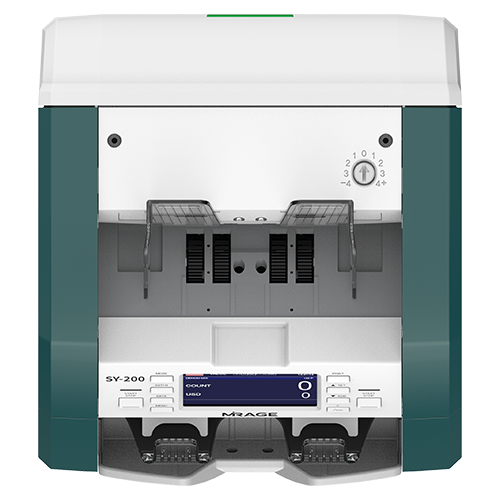

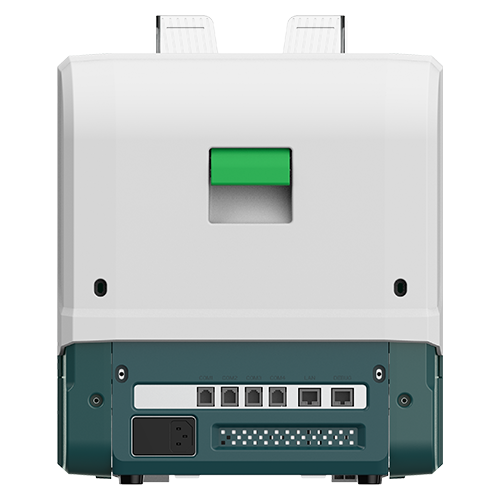

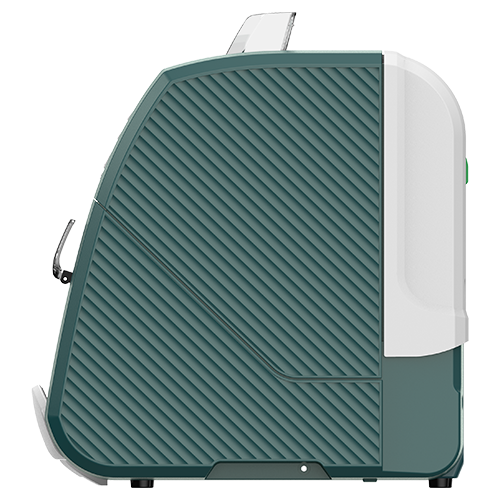

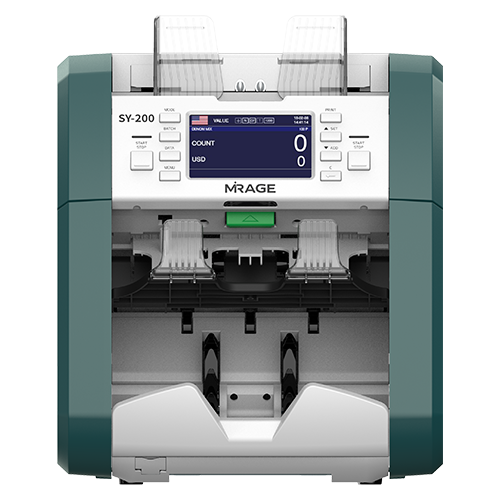

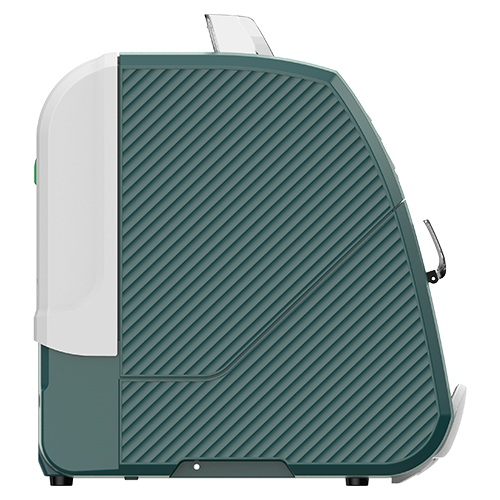

MIRAGE SY-200 Supreme Two Pocket Banknote Discriminator & Fitness Sorter

Designed for heavy-duty use and easy to handle. Superior features and performance. The SY-200 is the finest solution for two pocket discriminator & SY-200F for fitness sorter!

Features:

• Full-color image processing Dual CIS Recognition
• More advanced Heavy-Duty structure and very stable feeding mechanism for the silent, smooth, Jam-free operation
• Excellent Authentication – Precise MG detection with Multi-channel (18ch) MR system
• Reliable, High-Speed fitness sorting – F version (Optional)
• Optional Real time Serial OCR Recognition under high speed (1,200 notes/min)
• Multi-currency loading up to 40 currencies (Optional)
• Convenient, easy to use UI on 4.3-inch wide color Touch Screen display
• Cash / Data Management Solution by LAN networking system
• Check, Voucher, TITO Scan (Optional)
• Useful functionality (Daily Total/Multi-User function)

Specification:

• Dimention (W x D x H): 312mm x 340mm x 340mm
• Weight: Approximately 13KG
• Hopper Capacity: 500 notes
• Stacker Capacity: 200 notes

Counting Speed:

• 1,500 notes/min (Piece Count)
• 1,200 notes/min (Value/Authentication)
• 1,200 notes/min (Serial Number) / Fitness

Operation:

• Mixed Value Count (Auto Recognition: 20C)
• Denomination/Face/Orientation Sort
• Real-time OCR Serial Number Reading
• Fitness Sorting (F Version)

Sensor System:

• Dual CIS / UV, MG (18ch), IR

External Connection: LAN, USB, RS232C Serial Port

Operating System: Linux

Display: 4.3 inches wide Touch Screen

Option:

• Check, Voucher, TITO Scan system
• Network Management Solution (LAN)
• SY-200F for fitness sorting

Annual Maintenance: Annual Maintenance contract is available for an extra charge. This will cover periodic maintenance of the unit on-site for a period of 12 months
