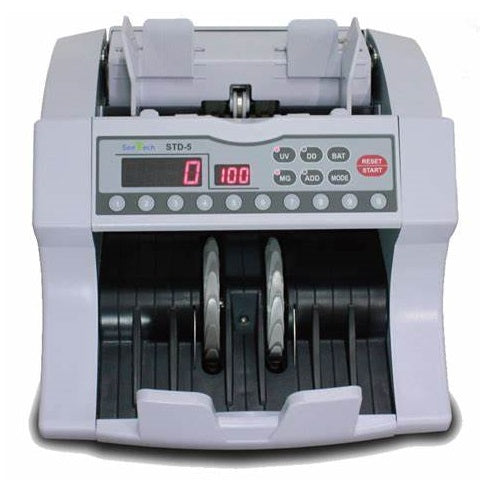

HITACHI Standard Banknote Detector STD-5

PRODUCT FEATURES:

• Roller friction type
• Sophisticated counterfeit note detection by UV, FL, MG
• Data interfacing function by PC
• IR Double Detection
• The self-diagnose function of all sensors and motors
• Add, Batch, Preset Function
• Upgrade function by PC
• Option for external display
• Low-level noise
• Easy trouble-shoot by the user from the keyboard
• LED display
• Double, chain, skew error detection
• 2D or 3D size detection

PRODUCT SPECIFICATION:

• Optical Density Detection: 0
• Double (IR) Detection: 0
• Size Detection (For Height): 0
• Ultraviolet (UV) & FL Detection: 0
• Magnetic (MG) Detection: 0 (option)
• Counting Speed: 1,000 – 1,800 notes I min
• Display: FND LED
• Input Capacity: 300 (500) notes
• Output Tray Capacity: 300 notes
• Dimensions of Banknotes, mm: (M)50×100 I (M)90×180
• Digit Display Capacity: 4 digits
• Batch Packaging Capacity: Max. 999
• Connectivity: Serial (RS-232)
• Power Consumption: 100 – 240V AC, 50/60Hz
• Dimensions, mm: 270(W) x 260(D) x 255(H)
• Net Weight: 6Kg
