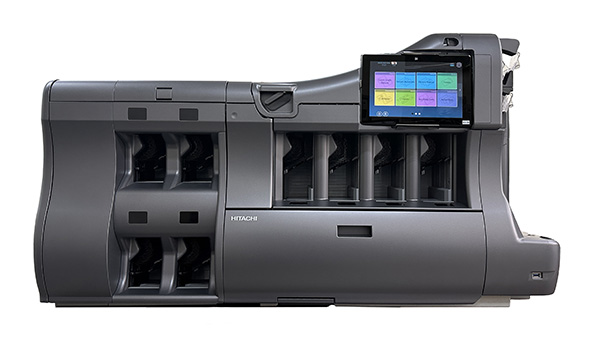

HITACHI MS-4200 + EX4

MS-4200 is a fast reliable, precise, and multi-functional sorter that provides a broad selection of options. It is an ideal choice for back office in banks and cash-in-transit(CIT), as well as casinos and retails.

High throughput & High accuracy

1. It is optimized for higher throughput, enhanced efficiency, and easy operation
2. Easy guidance for any operators
3. Showing Jam point in the screen
4. Automatic assisted feeding mechanism
5. Descending type stacker pocket
6. Extension 4 pockets (Optional)
7. Automated banding function (Optional)

Specification

Currency

• No limit to currency

• Mix: Up to 30 currency

Operating Speed

• Max 1,200 banknotes / min

• Max 72,000 banknotes / hour in all modes

Pocket Capacity

• Hopper: 1,200 notes

• Stacker: 500 notes with 4 stackers

• Reject: 250 notes with 2 reject

• (1 reject pocket is changeable as stacker)

Sensor Information

• Full line UV sensor applied

Banknote Size

• 60–85 mm × 100–177 mm

Dimension

• 860 (W) × 425 (D) × 680 (H) mm

Weight

• MS-4200: 86 kg, 120 kg (Gross)

Optional

Tablet PC

• 10.1 inches touch screen

• HDMI Port (External display support)

Extension 4 Pocket (EX4)

• Capacity: 250 notes with 4 stacker

• Dimension: 415 (W) × 425 (D) × 560 (H) mm

• Weight: 45 kg, 72 kg (Gross)

• MS-4200 + EX4: 8 stacker + 2 reject

Banding Unit (EX2B)

• QR code print: Available

• Banding position: Adjustable

• Expandability: Up to 2 banding units

• Dimension: 885 (W) × 425 (D) × 560 (H) mm

• Weight: 137 kg, 170 kg (Gross)
